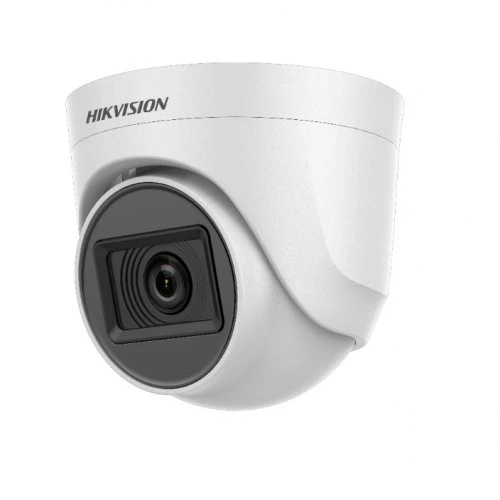

Hikvision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera

Hikvision DS-2CE76D0T-ITPF is a 2 MP Indoor Fixed Turret Diome shaped Security Camera. The Image Sensor used is a 2 MP CMOS with a PAL/NTSC signal system. The supported Resolution is 1920 X 1080 Pixels with a frame rate of TVI: 1080P@30fps, 1080P@25fps; CVI: 1080P@30fps, 1080P@25fps; AHD: 1080P@30fps, 1080P@25fps. The Minimum illumination is 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR. As for the Shutter Time, the readings are PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s; Lens 2.8 mm, 3.6 mm, 6 mm fixed lens. For the Field of View, The readings are 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°. It supports an M12 Lens Mount. It also has an ICR sensor for Day & Night cycling with a Digital WDR. The Angle Adjustment Pan readings are 0° to 360°, Tilt 0° to 75°, Rotation: 0° to 360°. The supported Modes include STD/HIGH-SAT with AGC, Day/Night Mode, Auto/Color/BW (Black and White), White Balance Auto/Manual, AE (Auto Exposure) Mode DWDR/BLC/HLC/Global, 2D DNR Noise Reduction, For function, it has Brightness, Sharpness, Smart IR Interface. The Infra-Red Range is Up to 20 m. The Video Output Switchable is in 4 modes they are  TVI/AHD/CVI/CVBS. The General operating Conditions are -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing). For the Power Supply, it is 12 VDC ± 25% with a Power Consumption of a Maximum of 2.2 Watt, Hikvision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera offers a 1-year warranty.
