Specification

Description

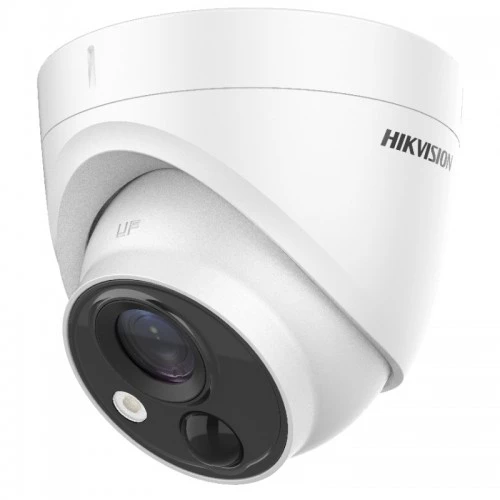

Hikvision DS-2CE71D0T-PIRLO 2 MP Indoor Fixed Turret Camera

Hikvision DS-2CE71D0T-PIRLO is a 2 MP Indoor Fixed Turret Camera. It has a 3.6 mm fixed focal lens. It supports 1920 × 1080 resolution. This camera comes with PIR detection, strobe light alarm, alarm out features and it has IP67 dust and waterproof rating. The IR and White Light Range is of this CC camera is up to 20 Meters. The Image Sensor used is a 2 MP CMOS with PAL/NTSC Signal System. The Frame Rate is TVI: 1080P@25fps, 1080P@30fps. The supported resolution is 1920 X 1080 pixels. The Min. Illumination is 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR. The Shutter Time readings are PAL: 1/25 s to 1/50, 000 s and NTSC: 1/30 s to 1/50, 000 s. The camera has a 3.6 mm fixed lens. The  Field of View reading is for the 3.6 mm lens is horizontal FOV: 82.2°, vertical FOV: 44°, diagonal FOV: 94°. It also has an M12 Lens Mount alongside a strobe Light Alarm. It also uses ICR Day & Night sensor with Digital WDR. The Angle Adjustment for this camera is Pan: 0° to 360°, Tilt: 0° to 75°, Rotate 0° to 360°. The Menu includes white Light, STD/HIGH-SAT Image Mode, AGC, Day/Night Mode Auto/Color/BW (Black and White), White Balance Auto/Manual, AE (Auto Exposure) Mode DWDR/BLC/HLC/Global, 2D DNR Noise Reduction, The basic functions includes Brightness, Sharpness, Mirror, Smart IR Interface. For video output 1 HD analog output. The optimal operating conditions are -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing). The Power Supply is 12 VDC ± 25%. The Power Consumption is 2.9 Watt Max. The PIR Angle and Range Angle: 110°, Range: 11 M which can go up to 20 M. Hikvision DS-2CE71D0T-PIRLO 2 MP Indoor Fixed Turret Camera offers a 1-year warranty.
