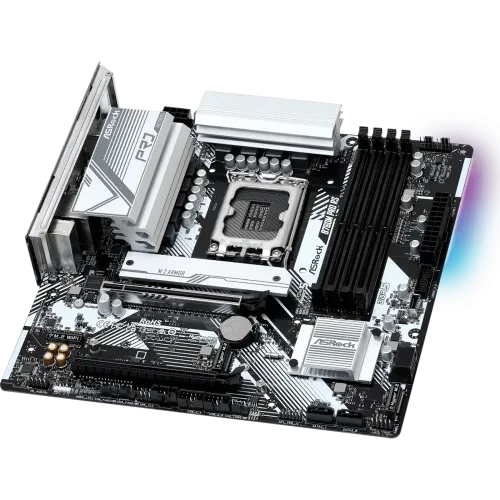

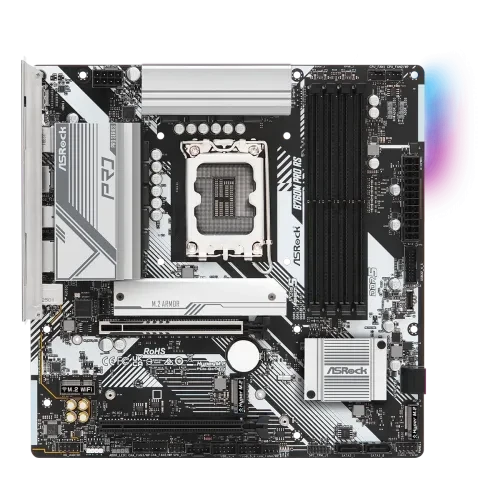

ASRock B760M Pro RS DDR5 mATX Motherboard

Shop New Arrivals

HEVÉR

ASRock B760M Pro RS DDR5 mATX Motherboard

(0) 0 Reviews 0 Orders 1 Wish listed

Product Code: 153582

Key Features

Model: B760M Pro RS
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

BDT19,200.00 ~~BDT21,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio	Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
Expansion Slots
PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory
Type	DDR5
Slots	4
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory	256GB
Graphics
Graphics	- Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

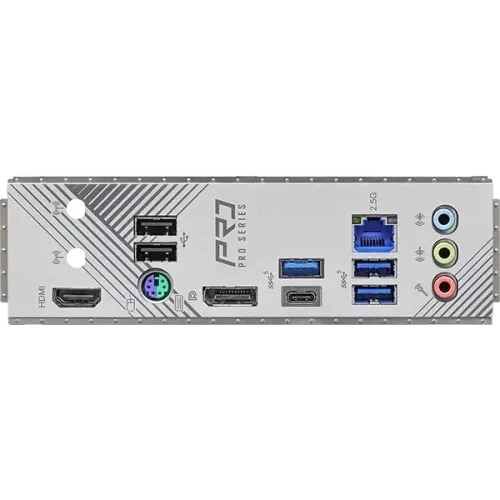

Internal I/O Ports	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty	3 years Warranty

Description

ASRock B760M Pro-A DDR5 Micro ATX Motherboard

The ASRock B760M Pro RS DDR5 mATX Motherboard is a high-performance and versatile platform designed to support the latest Intel Core processors, including the 14th Gen, 13th Gen, and 12th Gen with the LGA1700 socket. This ASRock motherboard features a robust 7+1+1 power phase design with Dr.MOS for efficient VCore and GT performance, ensuring stable and reliable power delivery. With four DDR5 DIMM slots, it supports dual-channel memory up to 7200+ MHz (OC), providing significant improvements in data transfer rates and overall system responsiveness. The motherboard includes one PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot, offering flexibility for various high-speed components and peripherals. For storage, the ASRock B760M Pro RS features four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4), providing ample space for high-speed SSDs and traditional hard drives. Connectivity is enhanced with Dragon 2.5G LAN and Killer 802.11ax WiFi 6E, ensuring fast and reliable network performance. The motherboard also includes a variety of USB ports, such as USB 3.2 Gen1 Type-C, USB 3.2 Gen1 Type-A, and USB 2.0 ports for versatile connectivity options. Advanced audio capabilities with 7.1 CH HD Audio (Realtek ALC897 Audio Codec) and Nahimic Audio deliver immersive sound quality for gaming and multimedia. The ASRock B760M Pro RS also supports ASRock Auto Driver Installer, simplifying the setup process. Its sleek design, combined with a 6-layer PCB and high-quality components, ensures durability and efficient heat dissipation, making it a reliable choice for any high-performance build. Whether you're looking for a gaming motherboard, a content creation platform, or a professional workstation, the ASRock B760M Pro RS DDR5 mATX Motherboard offers the features and performance needed to excel in any task.

Buy ASRock B760M Pro RS DDR5 mATX Motherboard from Fast Deals

In Bangladesh, you can get the original ASRock B760M Pro RS DDR5 mATX Motherboard From fast Deals. We have a large collection of the latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Fast Deals Shop to get yours at the lowest price. The ASRock B760M Pro RS DDR5 mATX Motherboard comes with 3 years warranty.

What is the price of ASRock B760M Pro RS DDR5 mATX Motherboard in Bangladesh?

The latest price of ASRock B760M Pro RS DDR5 mATX Motherboard in Bangladesh is 19,200৳. You can buy the ASRock B760M Pro RS DDR5 mATX Motherboard at best price from our website or visit any of our showrooms.
